Precision systems are widely used in the semiconductor industry as well as in medical and metrology technology. With stability, precision and dynamic response, our precision axes and precision systems ensure high throughput rates and reliable operation, even in these demanding ranges, despite ever-increasing requirements.

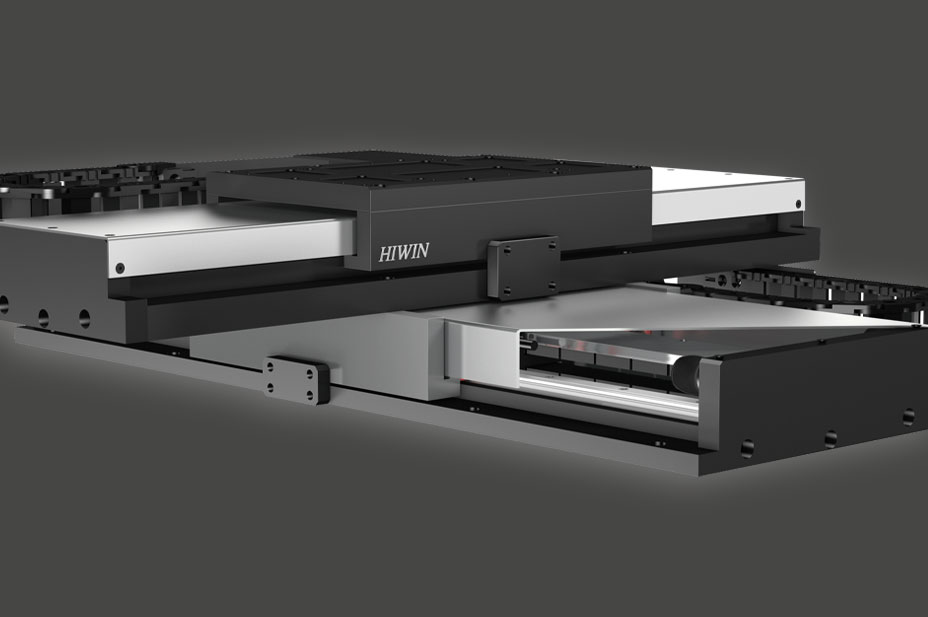

Preconfigured standard models of our precision cross tables and gantry significantly reduce the development time and thus the time to integration for the user. Thanks to a wide range of options, such as size, encapsulation, motor type and encoder system, we enable fast and precise integration into your own machine concepts. However, the high-precision axes and motion systems can also be customised. ‘If the right positioning system is not yet available, our application engineers will work with you to find the right solution,’ promises Werner Mäurer, Managing Director of HIWIN GmbH.

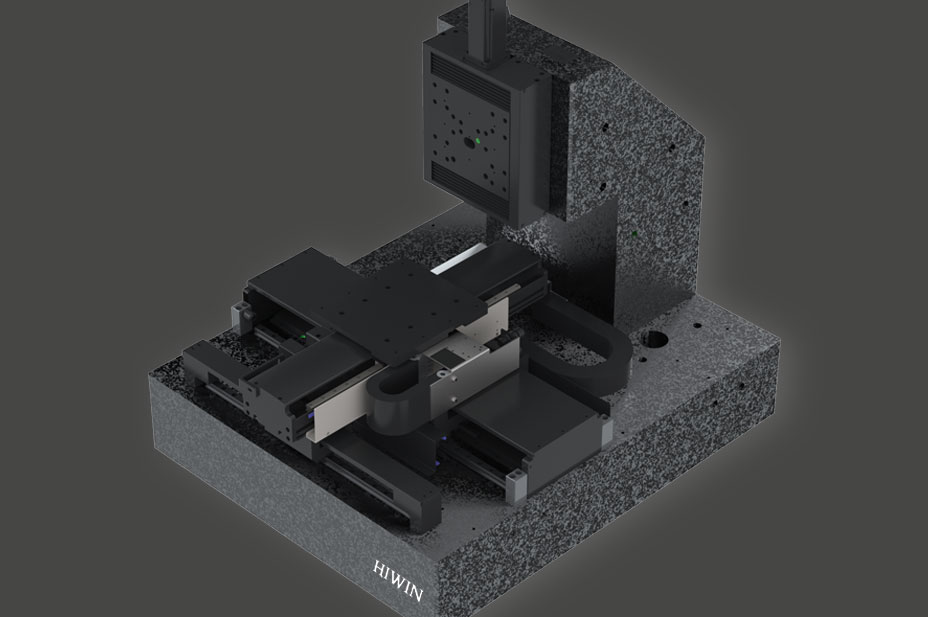

The repeatable and dynamic linear motor axes of the LMSSA series, as well as directly driven rotary tables and rotary units, can be added to the cross table or gantry, depending on requirements. The systems are also available on a granite base.

CAD data for the standardised cross tables and gantry are available for download here. Discover the possibilities for your precision system now!
