EM1-D-M-1A-2-0-E-0-A
Type:

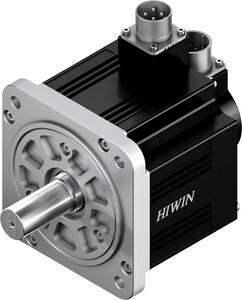

EM1-D-M-1A-2-0-E-0-A
Article number:
80041796
CAD

Torque-speed diagram

Dimensions

Technical data of motor
Tc Nominal torque 5,73 Nm
Ic Nominal current 9,1 Aeff
Tp Peak torque (for 1 sec.) 16 Nm
Ip Peak current (for 1 sec.) 27 Aeff
nN Nominal speed 2000 1/min
nmax Maximum speed 5000 1/min
P Nominal power 1200 W
V Nominal voltage 220 V AC
KT Torque constant 0,63 Nm/Aeff
Ke Back EMF constant 41,52 Veff/(1.000min-1)
R Winding resistance 0,482 Ω
L Winding inductance 4,54 mH
J Mass inertia moment 7,2 kgm² × 10-4
Motor insulation class Class F
Environmental conditions
Ambient temperature 0 °C to 50 °C
Storage temperature -15 °C to 70 °C
Air humidity Up to 80% relative humidity
Max. installation height 1,000 m above sea level
Accessories
Name Article number Description
Motor cable, ≥1,000W, without brake, 3m 8-10-1808 Motorleitung
Motor cable, ≥1,000W, without brake, 5m 8-10-1809 Motorleitung
Motor cable, ≥1,000W, without brake, 7m 8-10-1810 Motorleitung
Motor cable, ≥1,000W, without brake, 10m 8-10-1811 Motorleitung
HVPM04CB03MB 80032333 Motorleitung
HVPM04CB05MB 80032352 Motorleitung
HVPM04CB07MB 80032354 Motorleitung
HVPM04CB10MB 80032355 Motorleitung
HVPM04CB15MB 80040524 Motorleitung
HVPM04CB20MB 80040532 Motorleitung
HVPM04CB25MB 80040589 Motorleitung
HVPM04CB30MB 80040728 Motorleitung
EM1 encoder cable, absolute multi turn, ≥1000W, 3m 8-10-1828 Encoderleitung
EM1 encoder cable, absolute multi turn, ≥1000W, 5m 8-10-1829 Encoderleitung
EM1 encoder cable, absolute multi turn, ≥1000W, 7m 8-10-1830 Encoderleitung
EM1 encoder cable, absolute multi turn, ≥1000W, 10m 8-10-1831 Encoderleitung
HVE23ACB03MB 80032415 Encoderleitung
HVE23ACB05MB 80032416 Encoderleitung
HVE23ACB07MB 80032417 Encoderleitung
HVE23ACB10MB 80032418 Encoderleitung
HVE23ACB15MB 80041012 Encoderleitung
HVE23ACB20MB 80041016 Encoderleitung
HVE23ACB25MB 80041018 Encoderleitung
HVE23ACB30MB 80041023 Encoderleitung
Name Category Product Size Language
Servo motor with drive Project planning sheet Servo motors 157 KB
Servo motors EM1 Assembly Instructions Servo motors 4 MB
Servo motors EM1 Catalogue Servo motors 1 MB
