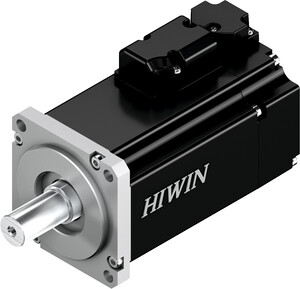

EM1-C-M-40-2-0-E-0-A
Type:
EM1-C-M-40-2-0-E-0-A
Article number:
8-07-0193
CAD

Torque-speed diagram

Dimensions

Technical data of motor
Tc Nominal torque 1,27 Nm
Ic Nominal current 2,5 Aeff
Tp Peak torque (for 1 sec.) 4,44 Nm
Ip Peak current (for 1 sec.) 10 Aeff
nN Nominal speed 3000 1/min
nmax Maximum speed 6000 1/min
P Nominal power 400 W
V Nominal voltage 220 V AC
KT Torque constant 0,508 Nm/Aeff
Ke Back EMF constant 33,87 Veff/(1.000min-1)
R Winding resistance 3,59 Ω
L Winding inductance 7,22 mH
J Mass inertia moment 0,48 kgm² × 10-4
Mass 1,25 kg
Motor insulation class Class F
Environmental conditions
Ambient temperature 0 °C to 50 °C
Storage temperature -15 °C to 70 °C
Air humidity Up to 80% relative humidity
Max. installation height 1,000 m above sea level
Accessories
Name Article number Description
Motor cable, ≤750W, without brake, 3m 8-10-1800 Motorleitung
Motor cable, ≤750W, without brake, 5m 8-10-1801 Motorleitung
Motor cable, ≤750W, without brake, 7m 8-10-1802 Motorleitung
Motor cable, ≤750W, without brake, 10m 8-10-1803 Motorleitung
HVPS04AB15MB 80040871 Motorleitung
HVPS04AB20MB 80040897 Motorleitung
HVPS04AB25MB 80040899 Motorleitung
HVPS04AB30MB 80040904 Motorleitung
EM1 encoder cable, absolute multi turn, ≤750W, 3m 8-10-1824 Encoderleitung
EM1 encoder cable, absolute multi turn, ≤750W, 5m 8-10-1825 Encoderleitung
EM1 encoder cable, absolute multi turn, ≤750W, 7m 8-10-1826 Encoderleitung
EM1 encoder cable, absolute multi turn, ≤750W, 10m 8-10-1827 Encoderleitung
HVE23AAB15MB 80040993 Encoderleitung
HVE23AAB20MB 80040995 Encoderleitung
HVE23AAB25MB 80040998 Encoderleitung
HVE23AAB30MB 80041003 Encoderleitung
Name Category Product Size Language
Servo motor with drive Project planning sheet Servo motors 157 KB
