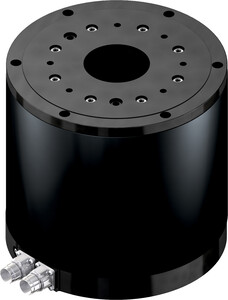

DMS03-A000
| Technical data of rotary table | |||
|---|---|---|---|
| Tp | Peak torque (for 1 sec.) | 9,3 | Nm |
| Tc | Continuous torque | 3,1 | Nm |
| Ts | Stall torque | 2,17 | Nm |
| J | Mass inertia moment | 0,003 | kgm² |
| Mass | 4 | kg | |
| Fa | Max. axial load | 3700 | N |
| Fr | Max. radial load | 820 | N |
| Mk | Max. tilting moment | 40 | Nm |
| Max. speed (600 VDC) | 750 | 1/min | |
| Max. speed (325 VDC) | 700 | 1/min | |
| Accuracy | ± 45 | arcsec | |
| Repeatability | ± 3 | arcsec | |
| Radial run-out | 0,03 | mm | |
| Axial run-out | 0,03 | mm | |
| Outer diameter | 110 | mm | |
| Di | Hollow shaft diameter | 24 | mm |
| H | Height | 117,5 | mm |
| Protection class | IP40 | ||
| Technical data of motor | |||
|---|---|---|---|
| Ip | Peak current (for 1 sec.) | 6 | Aeff |
| Ic | Continuous current | 2 | Aeff |
| Km | Motor constant | 0,5 | Nm/⎷W |
| R25 | Winding resistance | 7,1 | Ω |
| L25 | Inductance | 15,2 | mH |
| Te | Back EMF constant | 2,1 | ms |
| Kt | Torque constant | 1,55 | Nm/Aeff |
| Ku | Voltage constant | 0,82 | Veff/(rad/s) |
| 2p | Number of poles | 10 | |
| Rth | Thermal resistance | 1,76 | °C/W |
| Tth | Thermal time constant | 1930 | s |
| Thermal protection | PTC SNM 100 | ||
| Max. DC bus voltage | 600 | V | |
