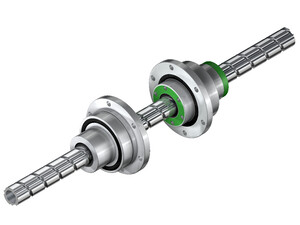

Dimensions
| Technical data of ballscrew nut | |||
|---|---|---|---|
| p | Thread pitch | 20 | mm |
| D2 g6 | Nut diameter | 56 | mm |
| L2 | Total length | 46 | mm |
| E2 | Length | 11 | mm |
| Z2 | Flange width | 6 | mm |
| T2 | Length | 21 | mm |
| A2 | Flange diameter | 72 | mm |
| F2 | Diameter | 43,5 | mm |
| S2 | Diameter | 40 | mm |
| C2 | Diameter | 4,5 | mm |
| W2 | Diameter | 64 | mm |
| W3 | Diameter | 31 | mm |
| m2 × t2 | Diameter | M5 × 8 | mm |
| C | Dynamic load rating | 6400 | N |
| C0 | Static load rating | 14000 | N |
| Ca | Dynamic load rating of support bearing | 9800 | N |
| C0a | Static load rating of support bearing | 13300 | N |
| Technical data of ball spline nut | |||
|---|---|---|---|
| ds | Nominal diameter | 20 | mm |
| D1 g6 | Nut diameter | 56 | mm |
| L1 | Total length | 63 | mm |
| E1 | Length | 12 | mm |
| Z1 | Flange width | 6 | mm |
| T1 | Length | 21 | mm |
| A1 | Flange diameter | 72 | mm |
| F1 | Diameter | 43,5 | mm |
| S1 | Diameter | 35 | mm |
| C1 | Diameter | 4,5 | mm |
| W | Diameter | 64 | mm |
| m1 × t1 | Diameter | M5 × 8 | mm |
| W1 | Diameter | 36 | mm |
| C | Dynamic load rating | 10400 | N |
| C0 | Static load rating | 20000 | N |
| CT | Dynamic torsional moment | 57,8 | Nm |
| C0T | Static torsional moment | 63,2 | Nm |
| Ma | Max. permissible static torque | 118 | Nm |
| Ca | Dynamic load rating of support bearing | 9800 | N |
| C0a | Static load rating of support bearing | 13300 | N |
